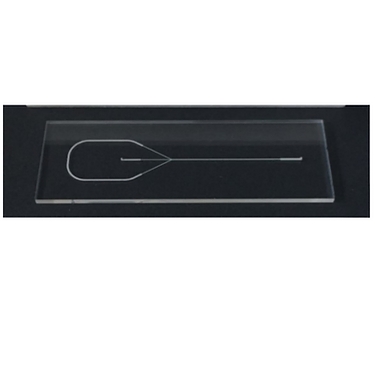

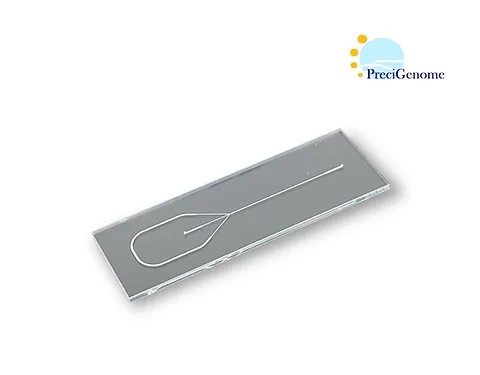

微流控混合芯片（玻璃）

Usage:Reaction device or mixing device.
Slide format: 25 x 75 m
Channel depth: 0.08 mm
Channel width:0.1 to 0.5 mm
Volume: 3.3 µL
Volume Mixer: 0.47 µL
Length Mixer: 28.7 mm

In the mixing section there are 6 mixing elements (chevrons) form one block (half cycle) and 30 blocks, so there are 15 complete cycles in total. The chip is tested with pressures from 1 to 3 bar, but there are also few examples of utilisation up to 10 bar.
The two arms of one chevron are 1/3 to 2/3 of the channel dimension (200 µm)
The distance between the chevrons is 50 µm
Each mixing element is 50 µm width and 30 µm height

Material: Glass
Glass is the material of choice if elevated temperatures or organic solvents come into play. . Custom-designs can be realized on demand.

用途:反应装置或混合装置。
幻灯片格式:25 × 75米
通道深度:0.08 mm
通道宽度:0.1 ~ 0.5 mm
体积:3.3µL
体积混合器:0.47µL
长度搅拌机:28.7毫米

混合段有6个混合元件(线形)，组成1块(半循环)和30块，共15个完整循环。芯片测试压力从1到3巴，但也有少数例子利用高达10巴。
一个v形的两条臂是通道尺寸的1/3到2/3(200µm)
线形线间距为50µm
每个混合元件宽度为50µm，高度为30µm

材料:玻璃
如果高温或有机溶剂起作用，玻璃是首选材料。可按需定制设计。
