NH500高压微射流均质机
NH500高压微射流均质机

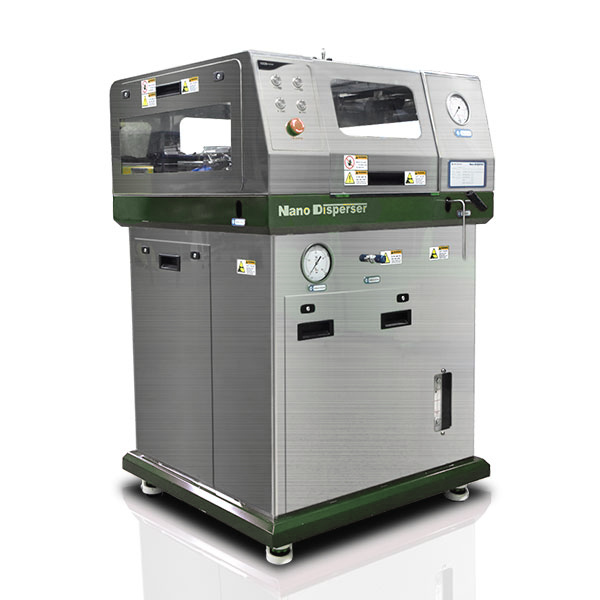

High pressure microfluidizer homogenizer
Product Summary
Hydraulic system is applied and cooling system can be used continuously for a long period of time. It is suitable for large-capacity production and has strong corrosion resistance to chemicals by applying Stainless steel material.
Overview
Strong durability | Production efficiency | High safety
Application field
Used to carry out processes such as emulsification, dispersion and crushing in food, cosmetics, pharmaceuticals, chemicals, pigments and dyes, and electronic materials industries.
NH500高压微射流均质机
产品目录
采用液压系统，冷却系统可长时间连续使用。适用于大容量生产，采用不锈钢材料，耐化学品腐蚀性强。
概述
耐用性强，生产效率高，安全性高
应用领域
用于食品、化妆品、医药、化工、颜料、染料、电子材料等行业进行乳化、分散、粉碎等工序。
| Series | Operation pressure | Flow rate | Pump system | Weight | Dimension (W x D x H) | Interaction chamber size | Interaction chamber type |
|---|---|---|---|---|---|---|---|
| NH500 | pressure for use 1,500bar | 500ml/min | Hydraulic unit system [220/380/440VAC, 50/60Hz, 7.5HP] | Approx. 600kg | 850 x 800 x 1,500 | 100um | Z type |

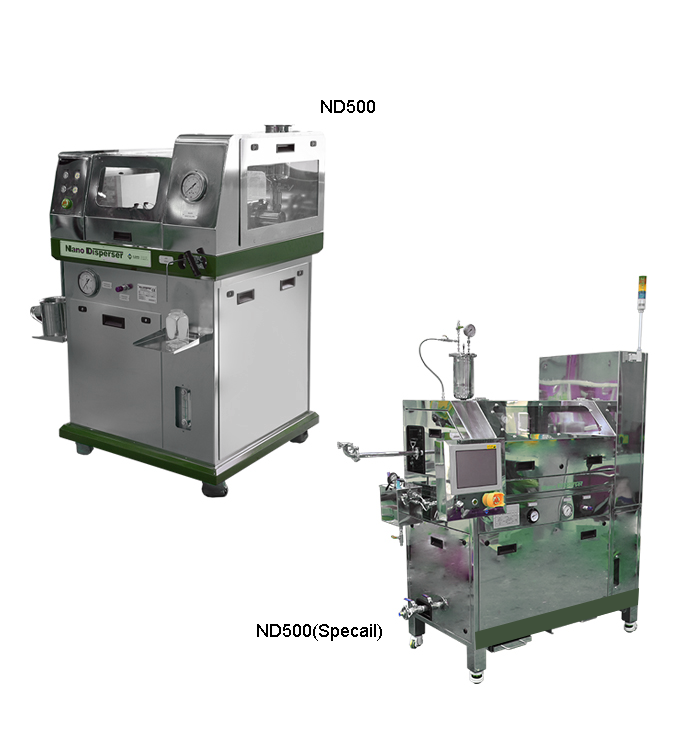

High Pressure Homogenizer/Microfluidizer
NH500 Medium disperserConvenience / Safety / Damage Prevention
高压均质器/微流化器
NH500介质分散器方便/安全/防损坏
Back Flushing System
Conveniently washing
Back flush system allows convenient cleaning in the event of chamber blockage.
反冲洗系统
方便清洗
后冲洗系统允许在腔室堵塞的情况下方便清洗。
Cooling System
Prevent damage to samples
Prevent damage to samples caused by heat generated after passing through the chamber
冷却系统
防止损坏样品防止通过腔室后产生的热量损坏样品
Case
Secure safety with external cases
Install the external casing on the piping line, excluding the specimen filler
箱体
安全与外部箱体
将外部箱体安装在管道上，不包括试样填料器

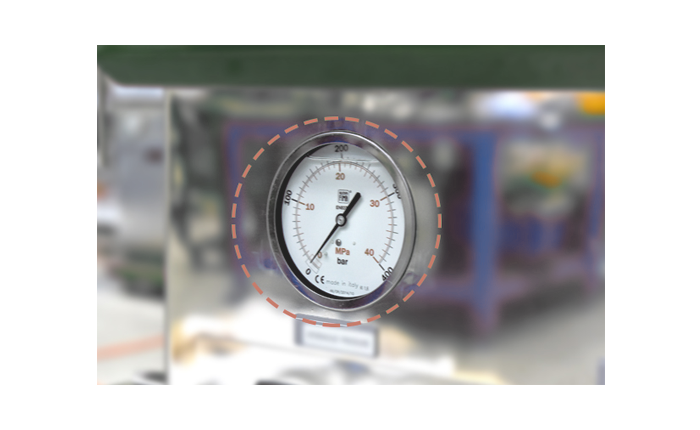

Pressure Controller
Pressure Regulating Hydraulic Unit Control
Hydraulic unit control allows pressure control in the chamber
压力控制器
调节液压单元控制
液压单位控制允许压力控制在室内
Interaction Chamber Type
Chamber Type
Z type : Suspension - Powder is recommended for dispersing and grinding on liquid, CNT, Aluminum, etc.
Y type: Emulsion - Liquid and Liquid, Recommended ex) milk, water, oil, etc.
相互作用腔类型
腔室类型
Z型：悬浮剂-推荐用于液体，碳纳米管，铝等的分散和研磨。
Y型：乳化液-液体和液体，推荐使用牛奶、水、油等。
